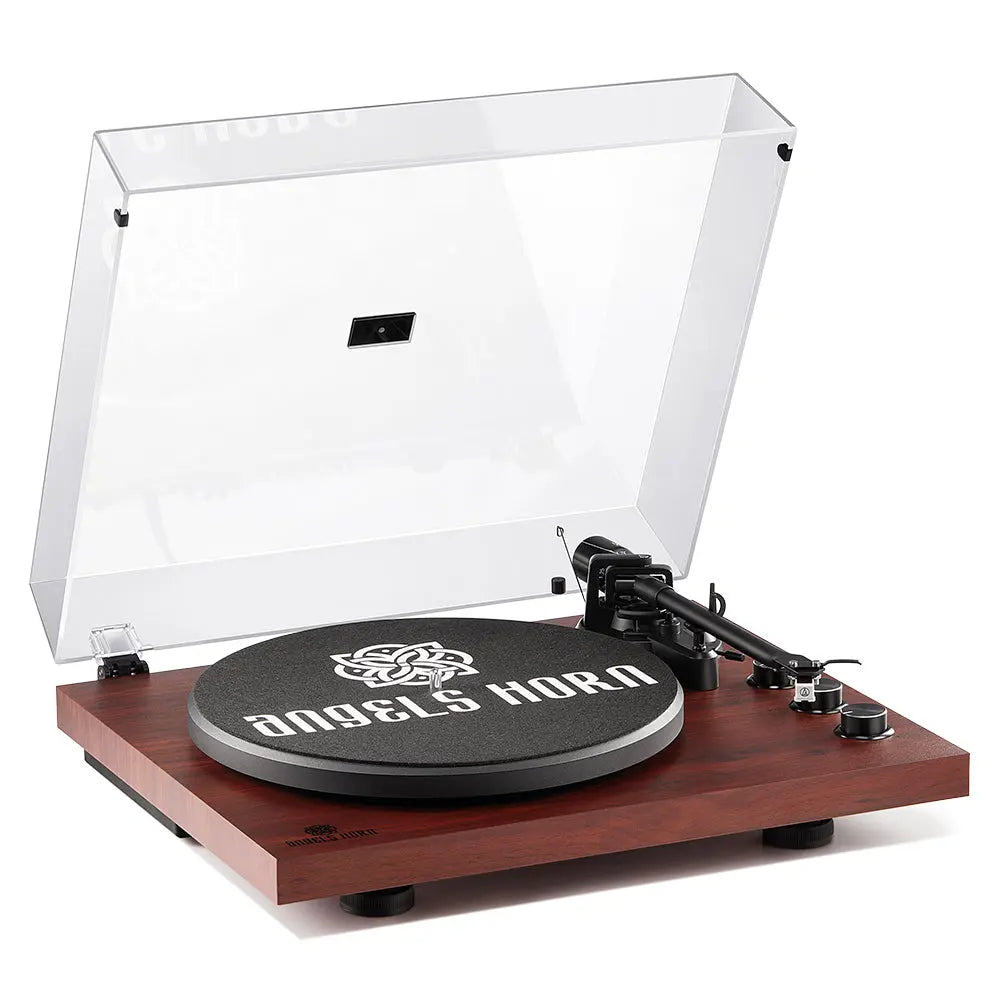

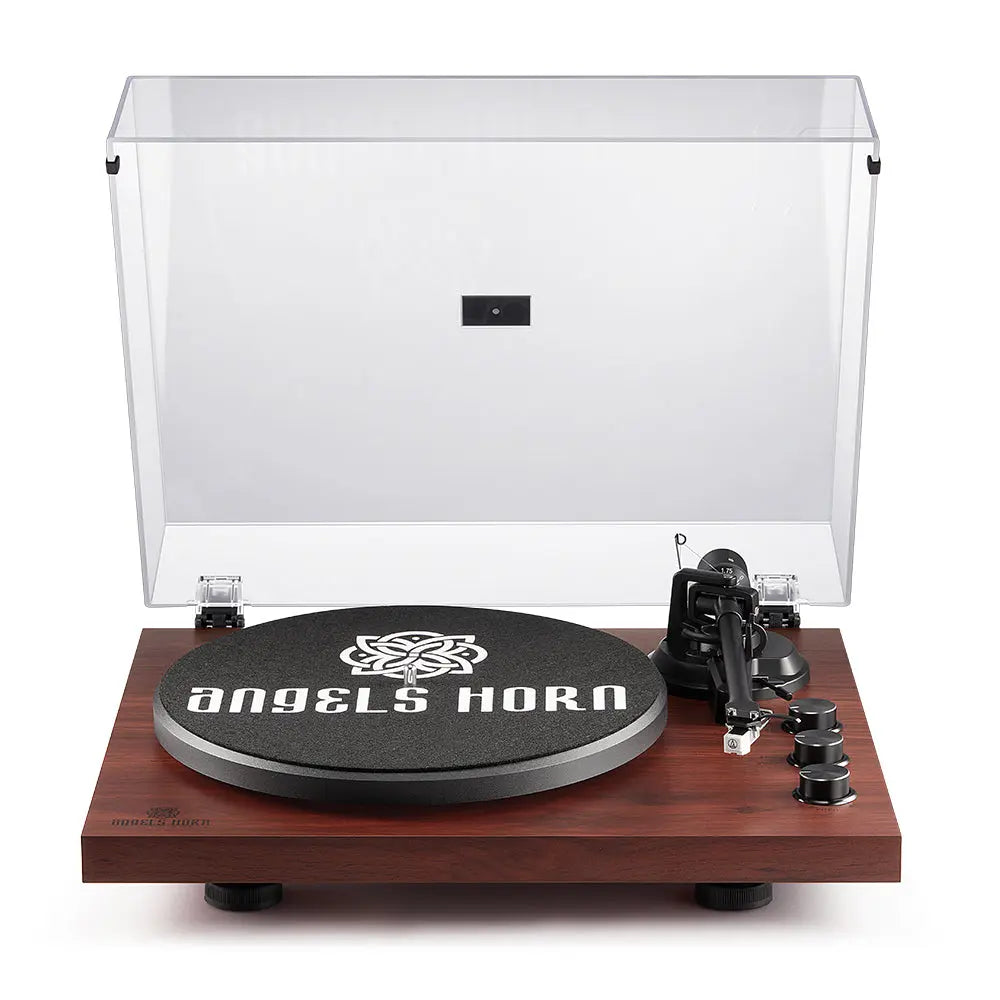

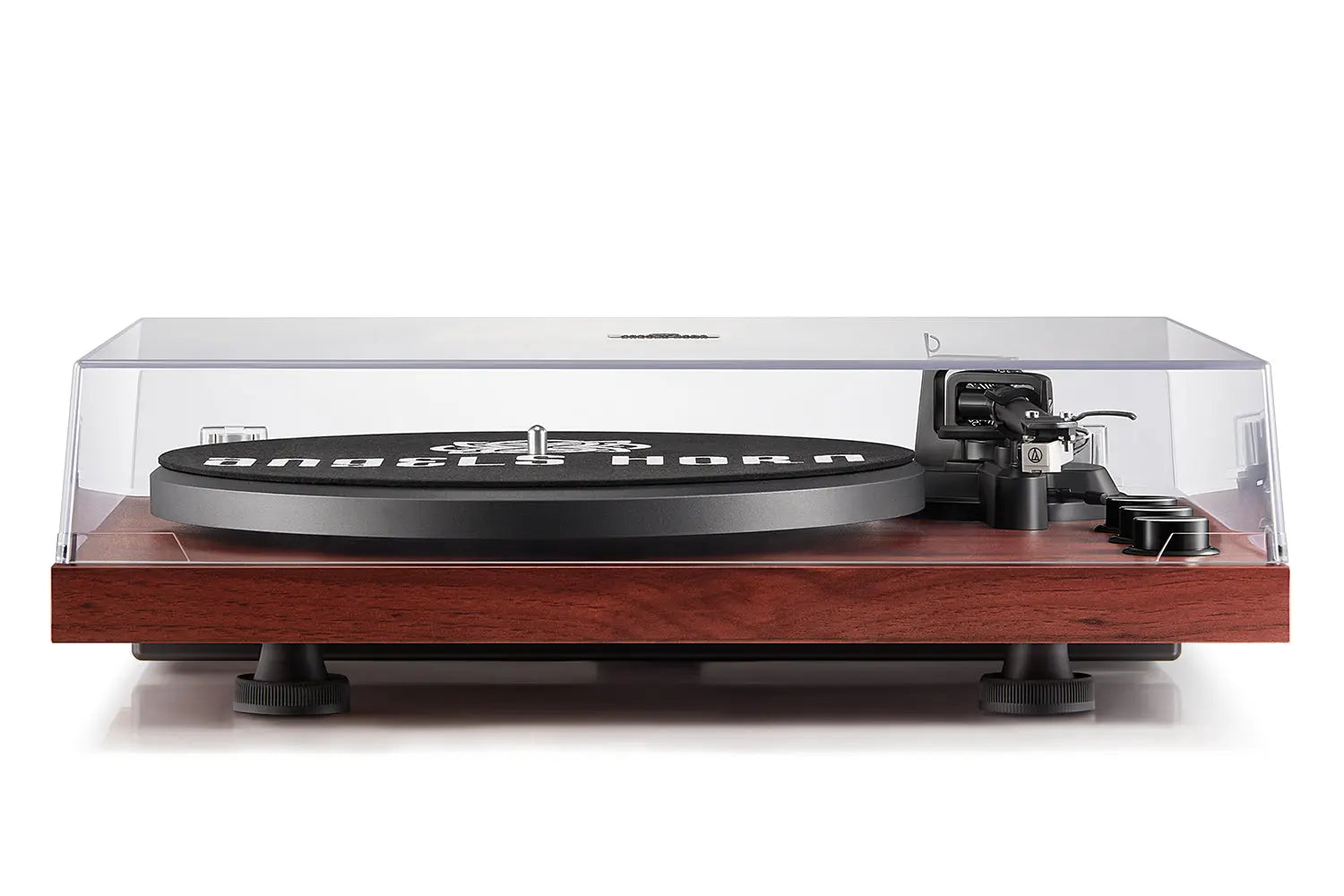

About Angels Horn AH1 Wooden Turntable

Part names and functions:

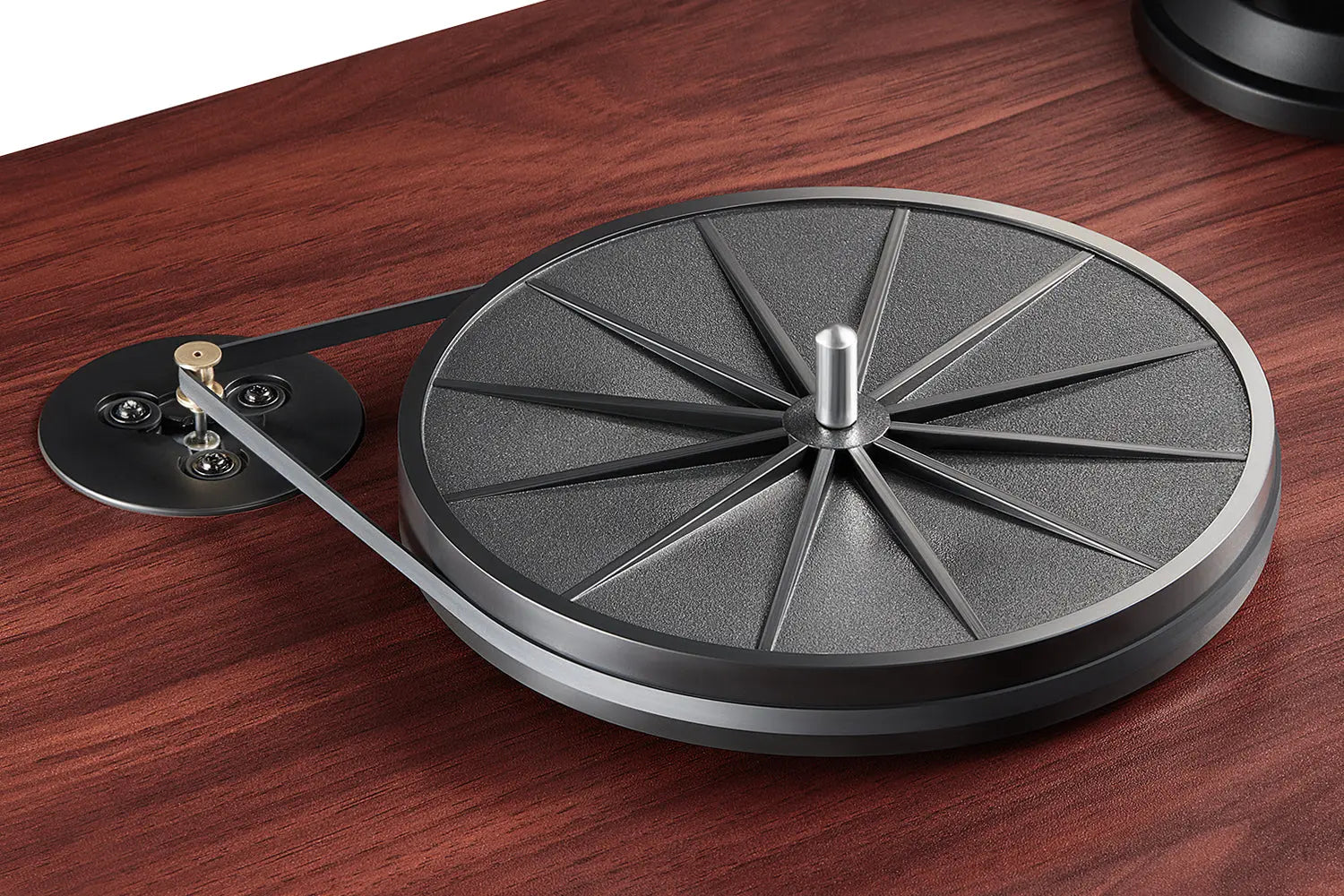

1. Lid Hinges
2. Motor Pulley
3. Drive Belt
4. Turntable Spindle
5. Turntable Sub-platter

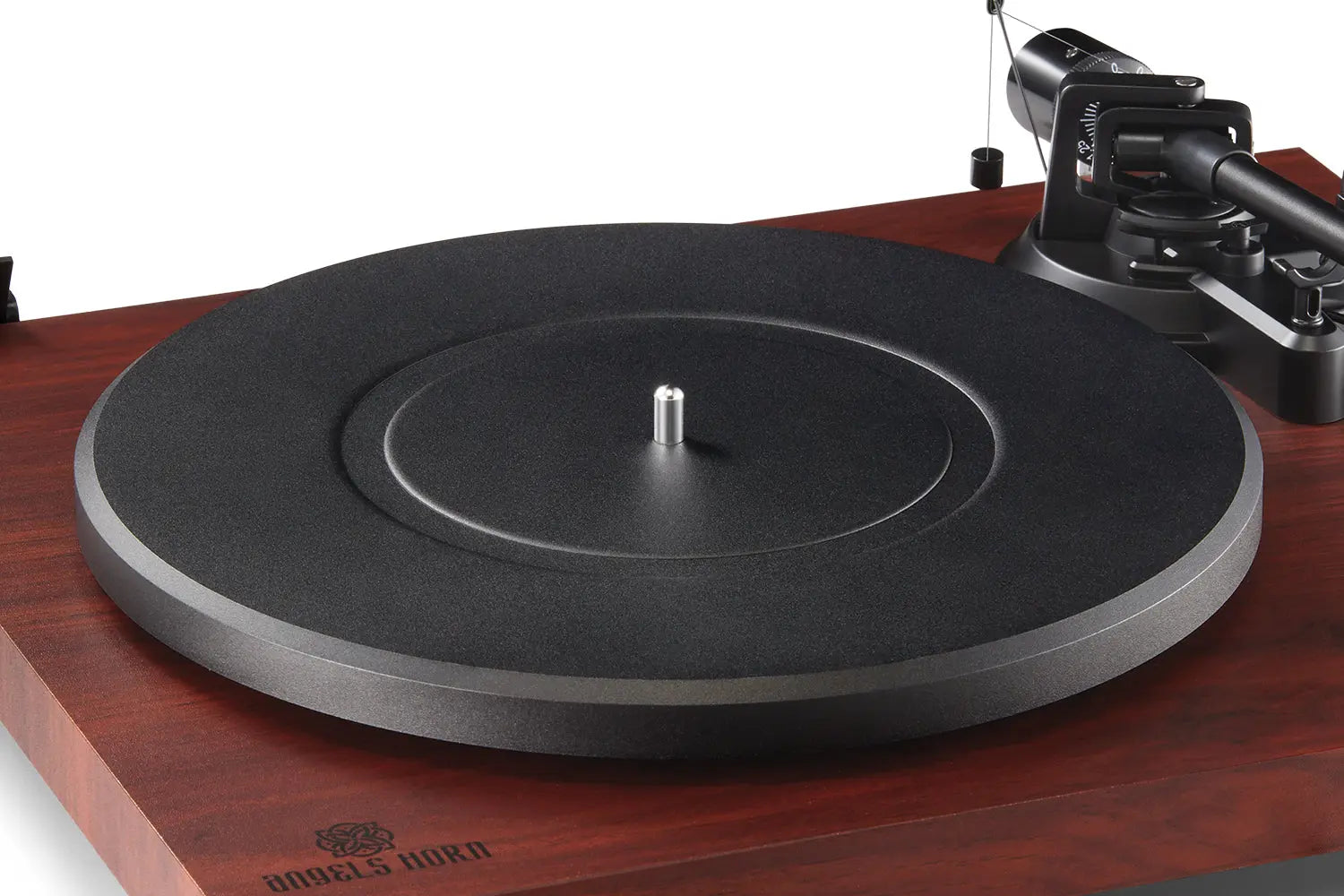

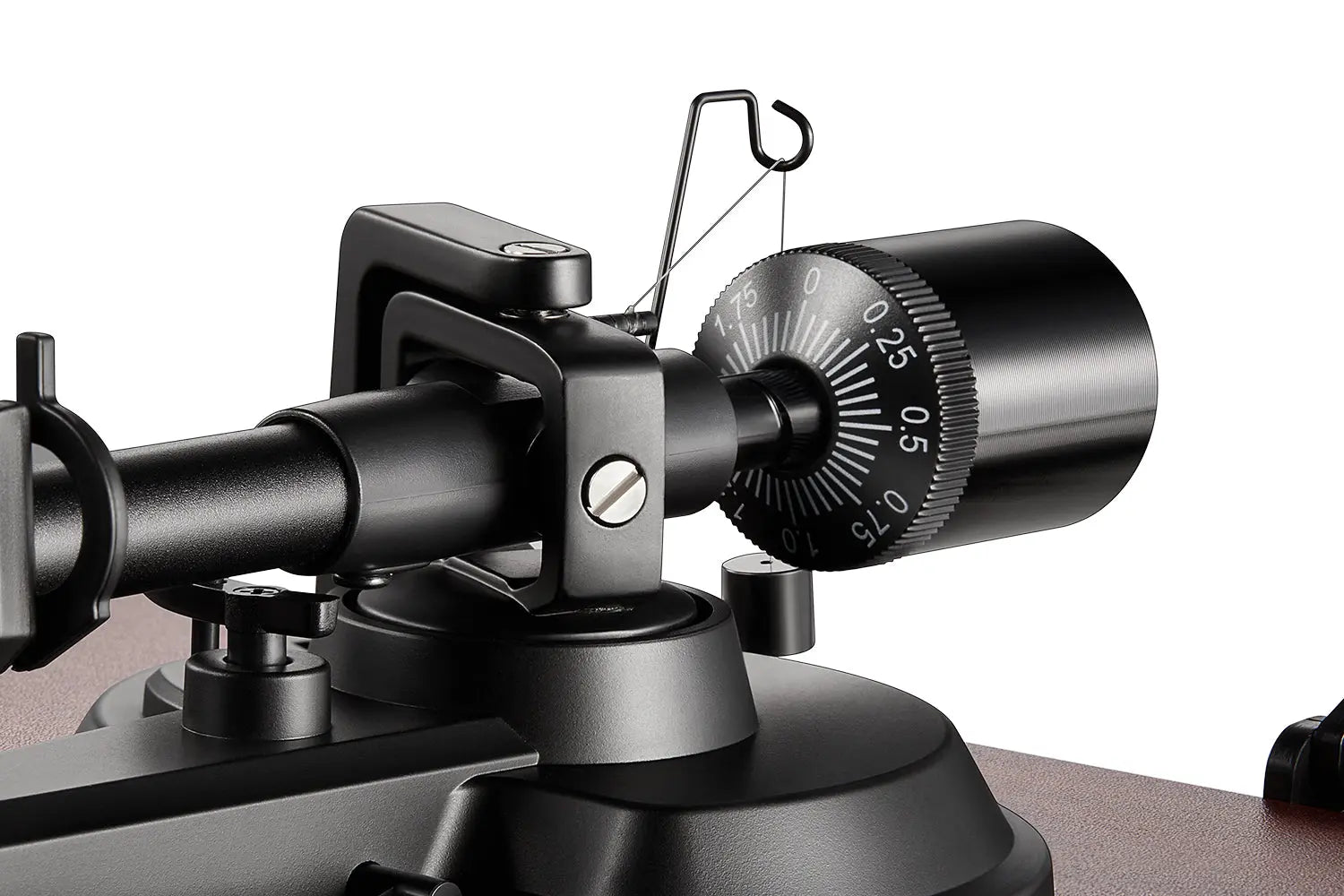

6. Turntable Platter
7. Anti-Skating Weight
8. Counterweight
9. Anti-Skating Stub
10. Tonearm Lift Lever
11. Tonearm Rest & Clip

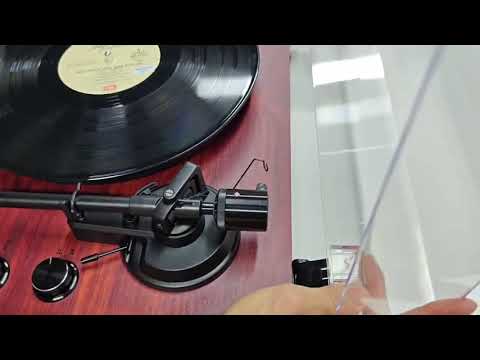

12. Tonearm

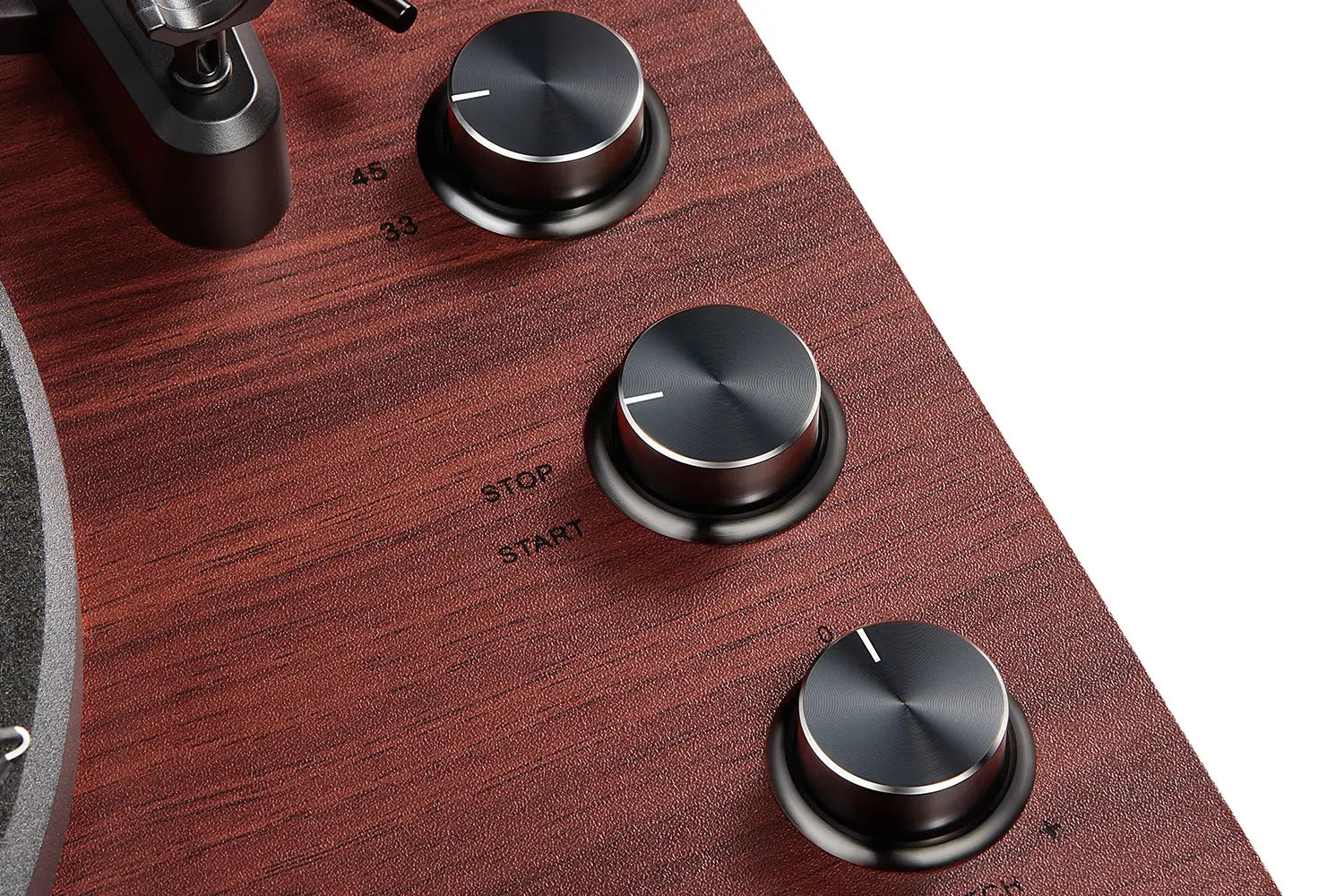

13. 33/45 RPM Selector
14. Start/Stop Selector

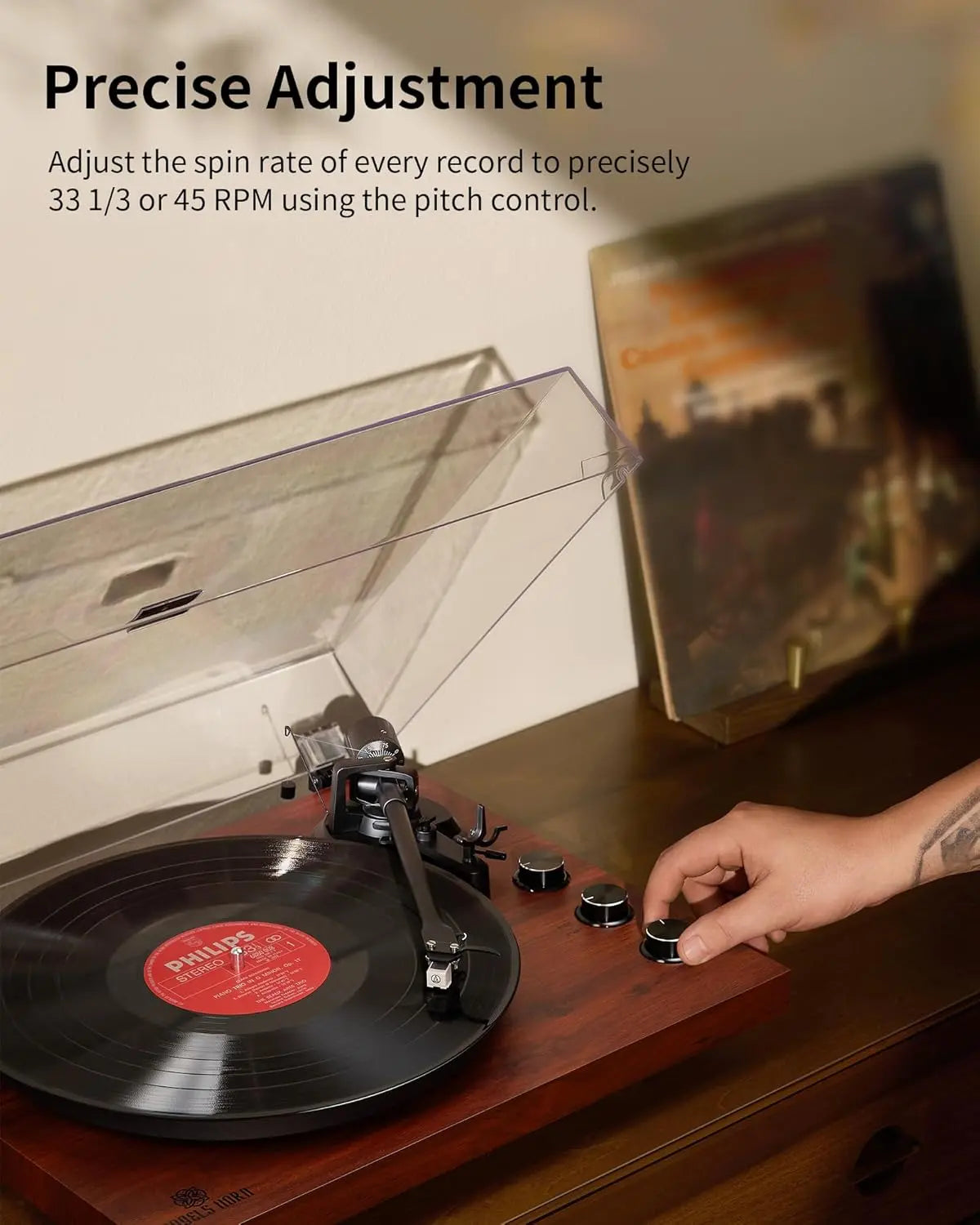

15. Pitch Adjustment Knob

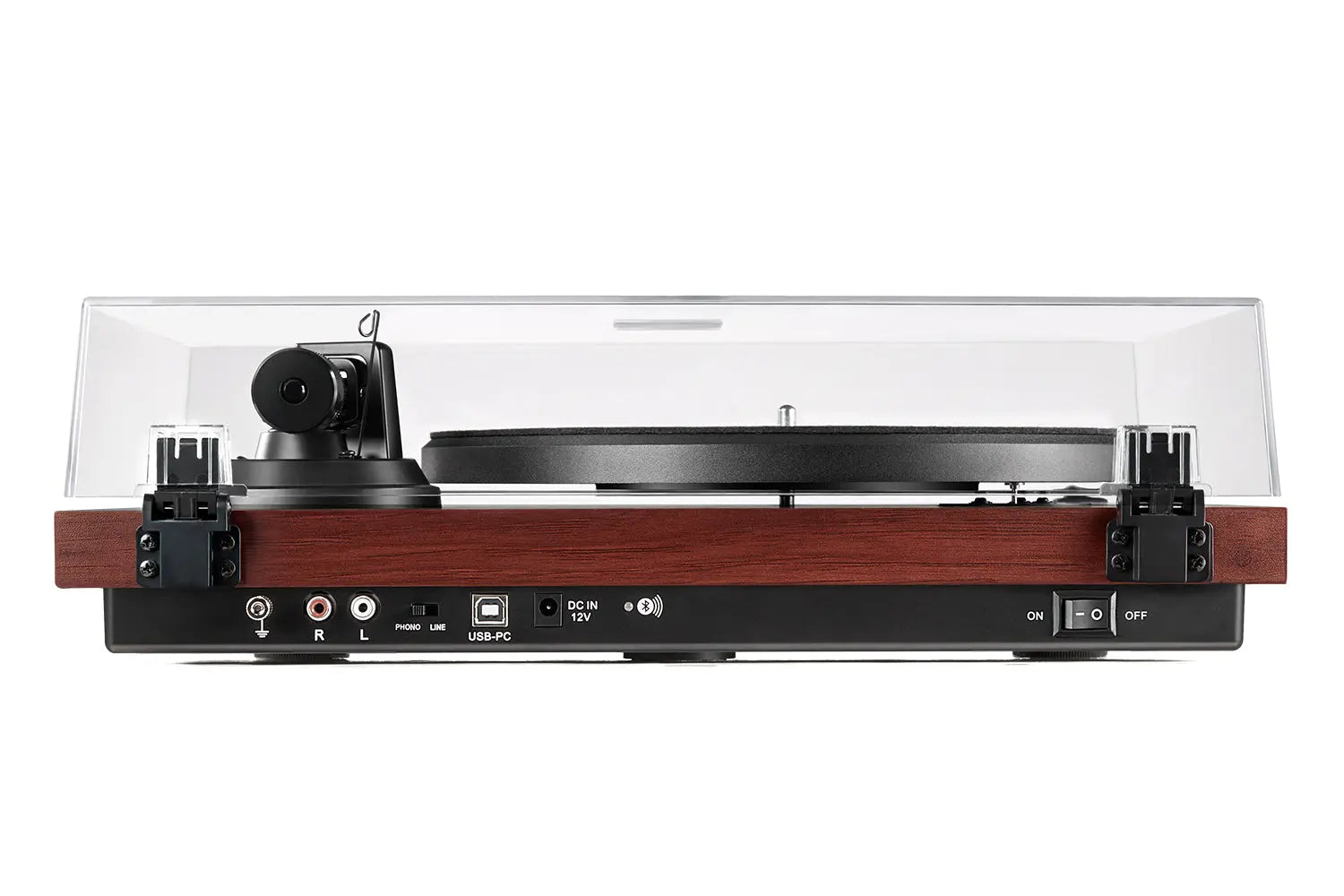

16. Cartridge
17. Lid
18. Ground Connector

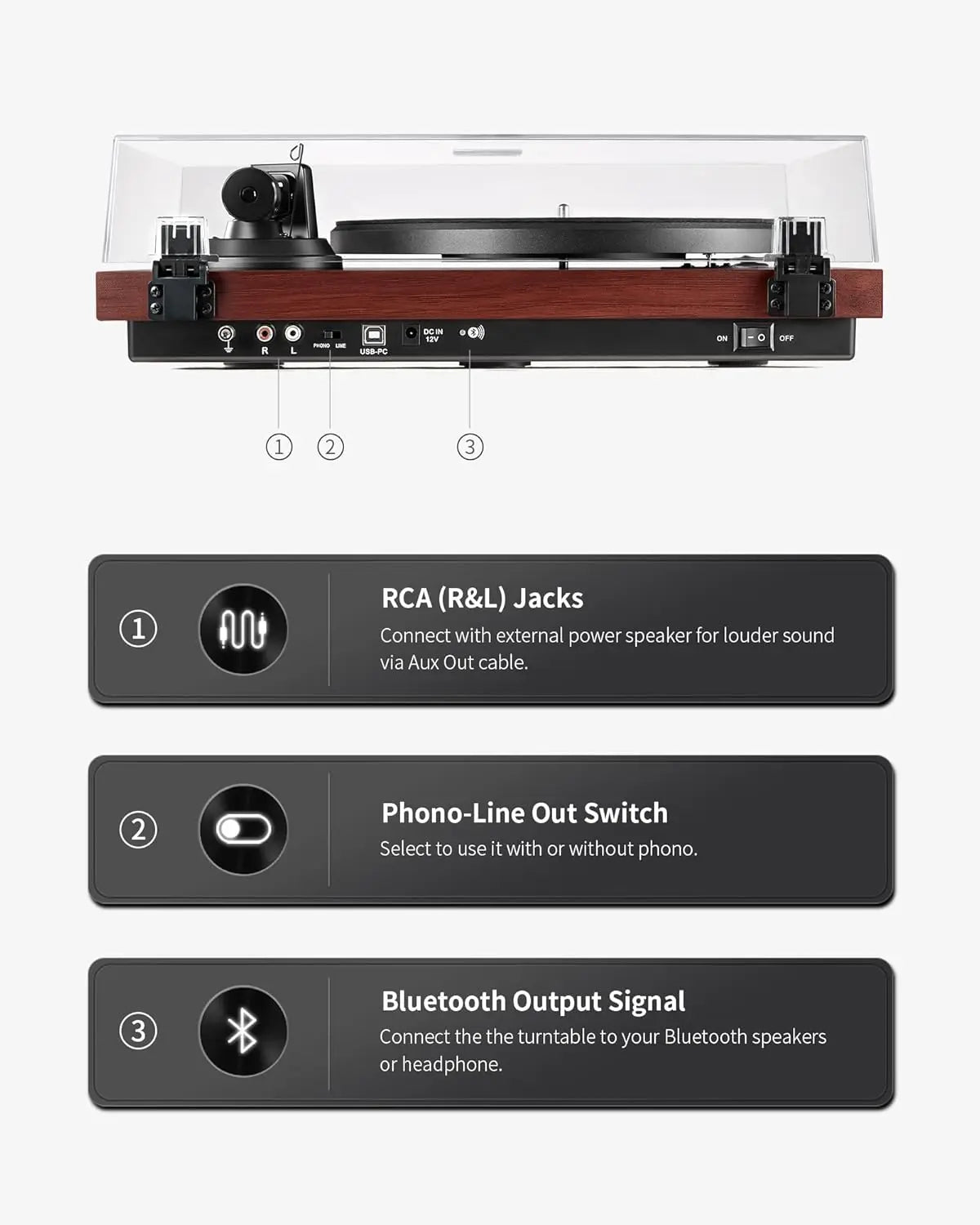

19. Phono & Line Out Jacks
20. Phono & Line Out Switch
21. USB Port for PC Link
22. AC-DC Power Jack
23. Bluetooth Indicator Light
24. Power Switch

.

Technical Specifications

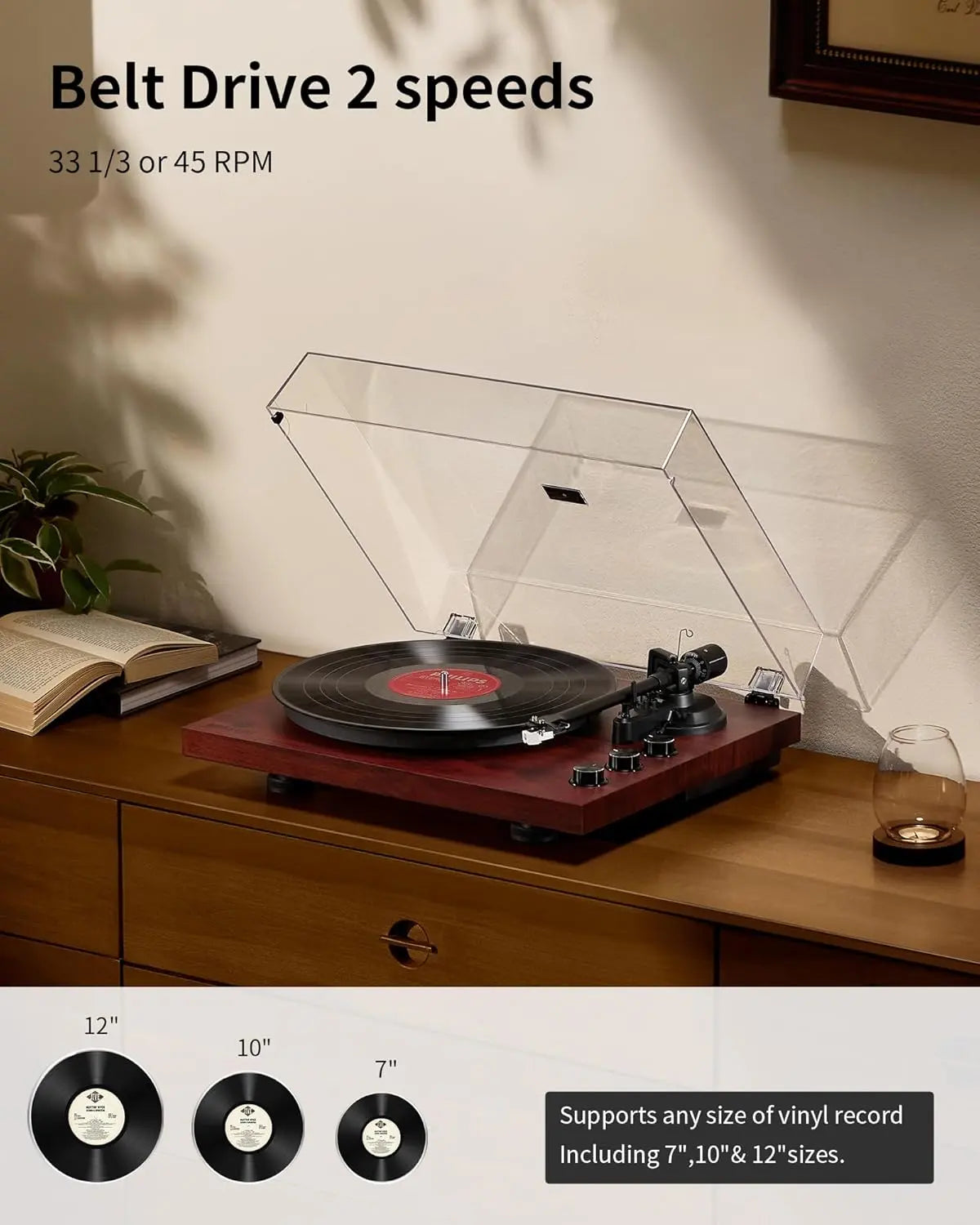

• Nominal Speeds: 33 1/3 & 45RPM
• Speed Variance: +3%-2%
• Wow and Flutter: ≤0.15%
• Signal to Noise: 70dB
• Down force Range: 3.0-6.0g
• Effective Tonearm Length: 8.6” (218.5mm)
• Overhang: 0.73in
• Power Consumption: 5W (Max)
• Outboard Power Supply: 12V/500mA AC-DC
• Dimensions (W x H x D): 420 x 360 x 125mm
• Weight: 5.7kgs
• Platter wobbling: < 0.15%
• Line out Output Voltage: 180mV (1KHz-10dB, 33RPM)
• Phono out Output Voltage: 2.5mV (1KHz-10dB, 33RPM)

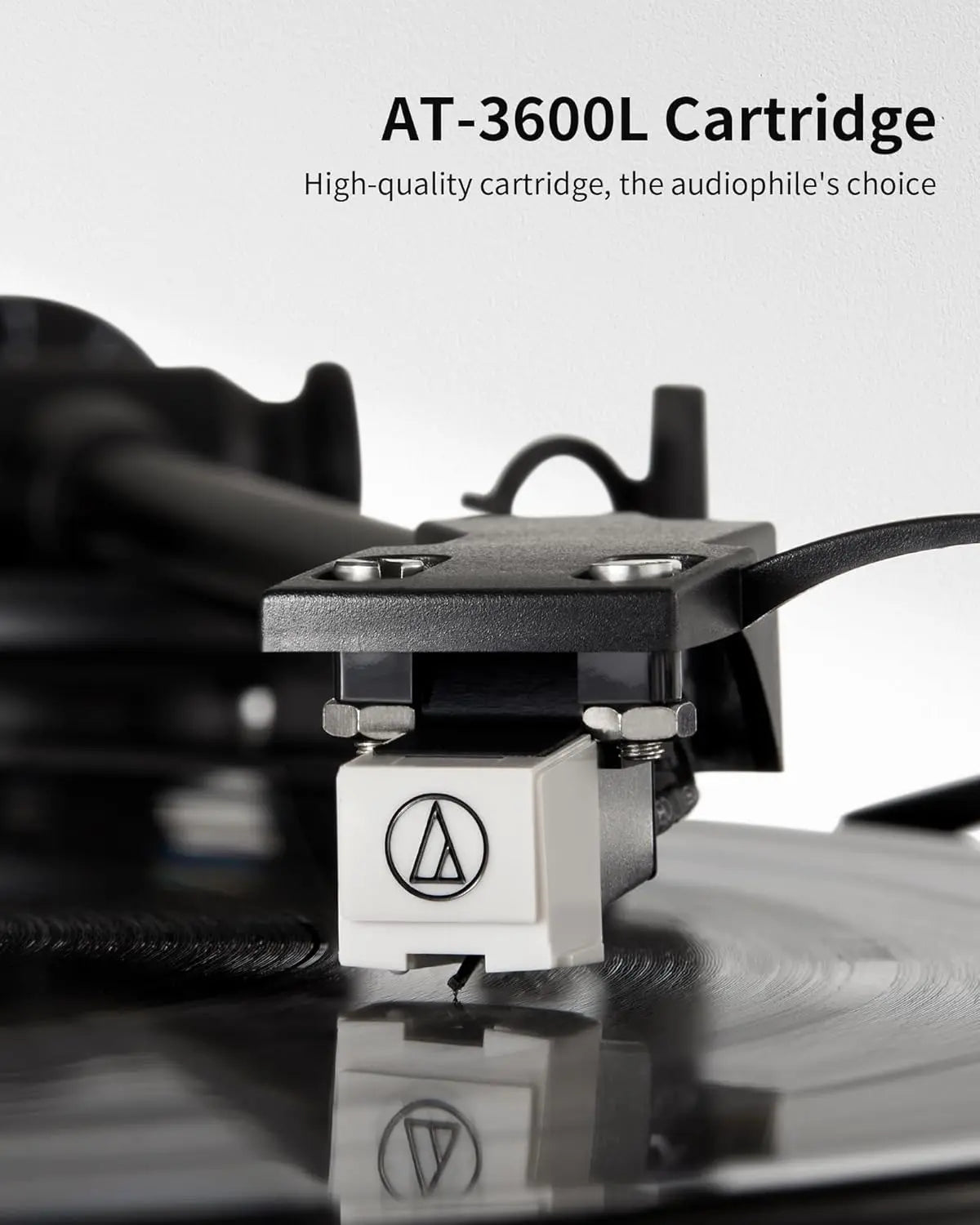

Technical Specifications for AT-3600L (Audio-Technica)

• Frequency Response: 20Hz-20kHz
• Recommended Load Resistance: 47kohms
• Channel Balance: <2.5dB
• Amplifier Connection: MM - input
• Channel Separation: >18dB
• Recommended Tracking Force: 3.5±0.5g
• Output Voltage: 2.5mV
• Weight: 5g
• Trackability: >90µm
