Angels Horn Bluetooth Bookshelf Speakers H268

Technical Specs:

Components, Features and Connections

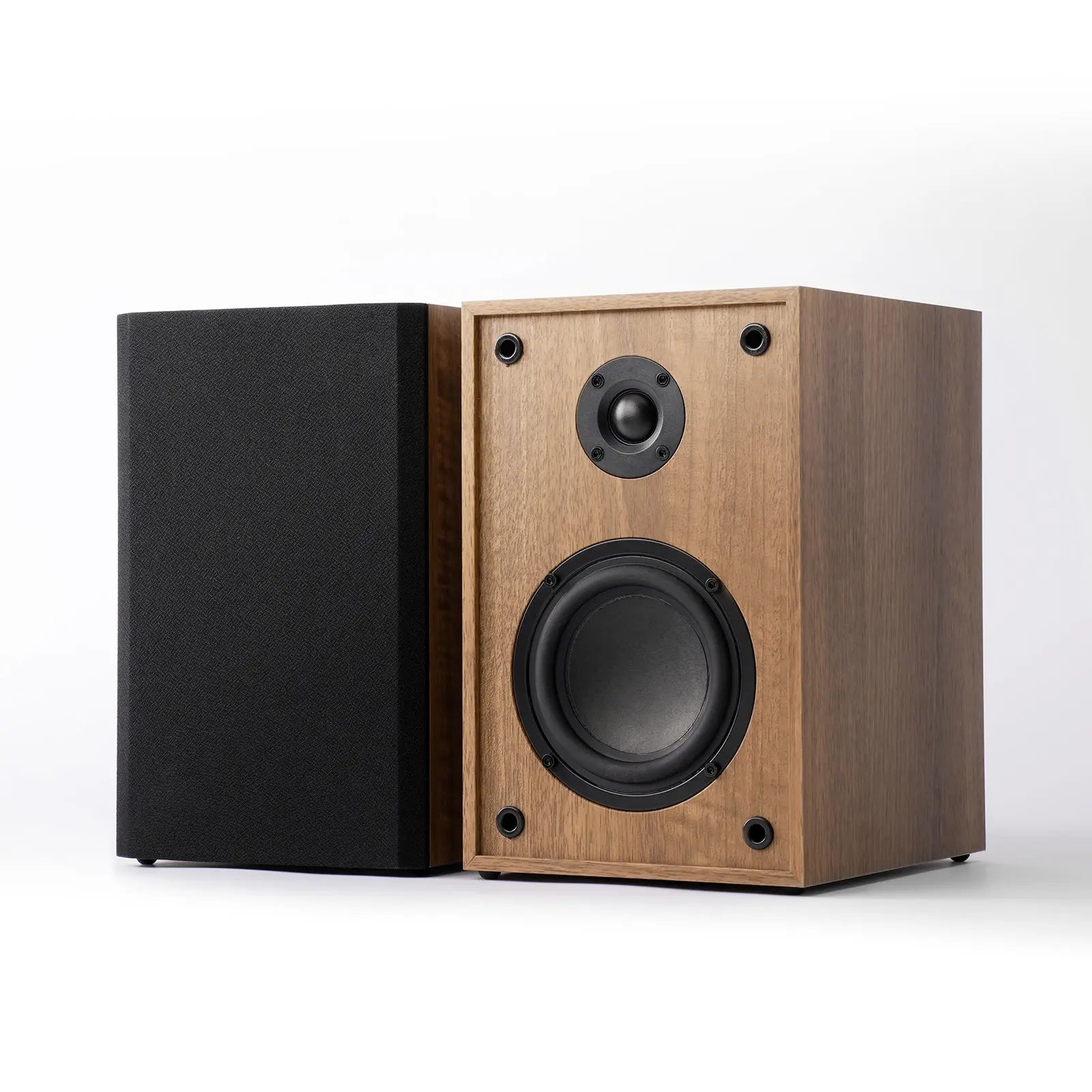

Speaker with Power Jack
1. Tweeter
2. Remote Receiver
3. Woofer
4. Volume Knob
5. Indicator
6. Line in Jack
7. AC-DC Power Jack
8. Speaker Jack
9. Power Rocker Switch

Speaker without Power Jack

10. Tweeter
11. Woofer
12. Speaker Jack

Remote Control

13. Mute
14. Line In Mode
15. Bluetooth Mode
16. Power Button
17. Volume +
18. Volume -

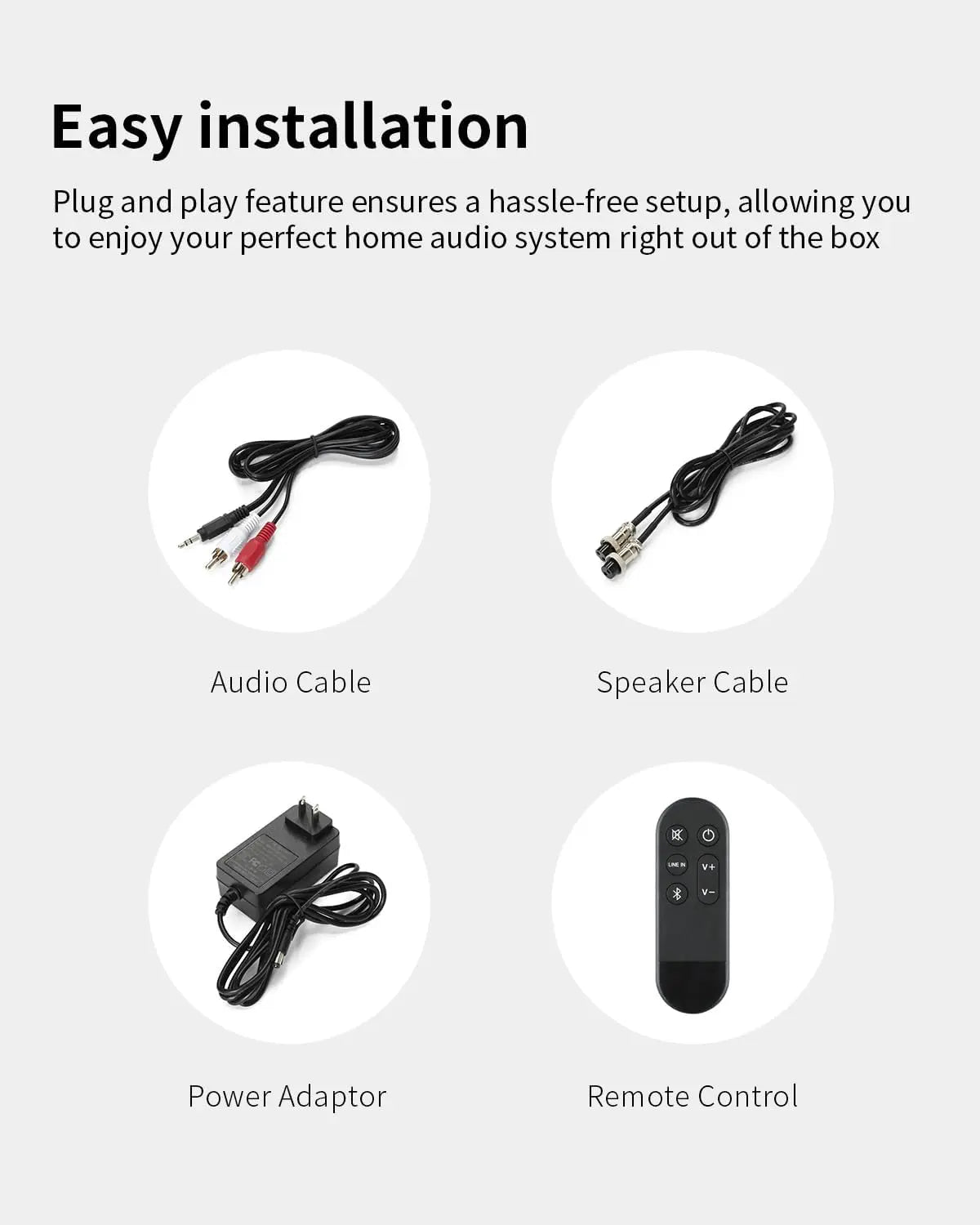

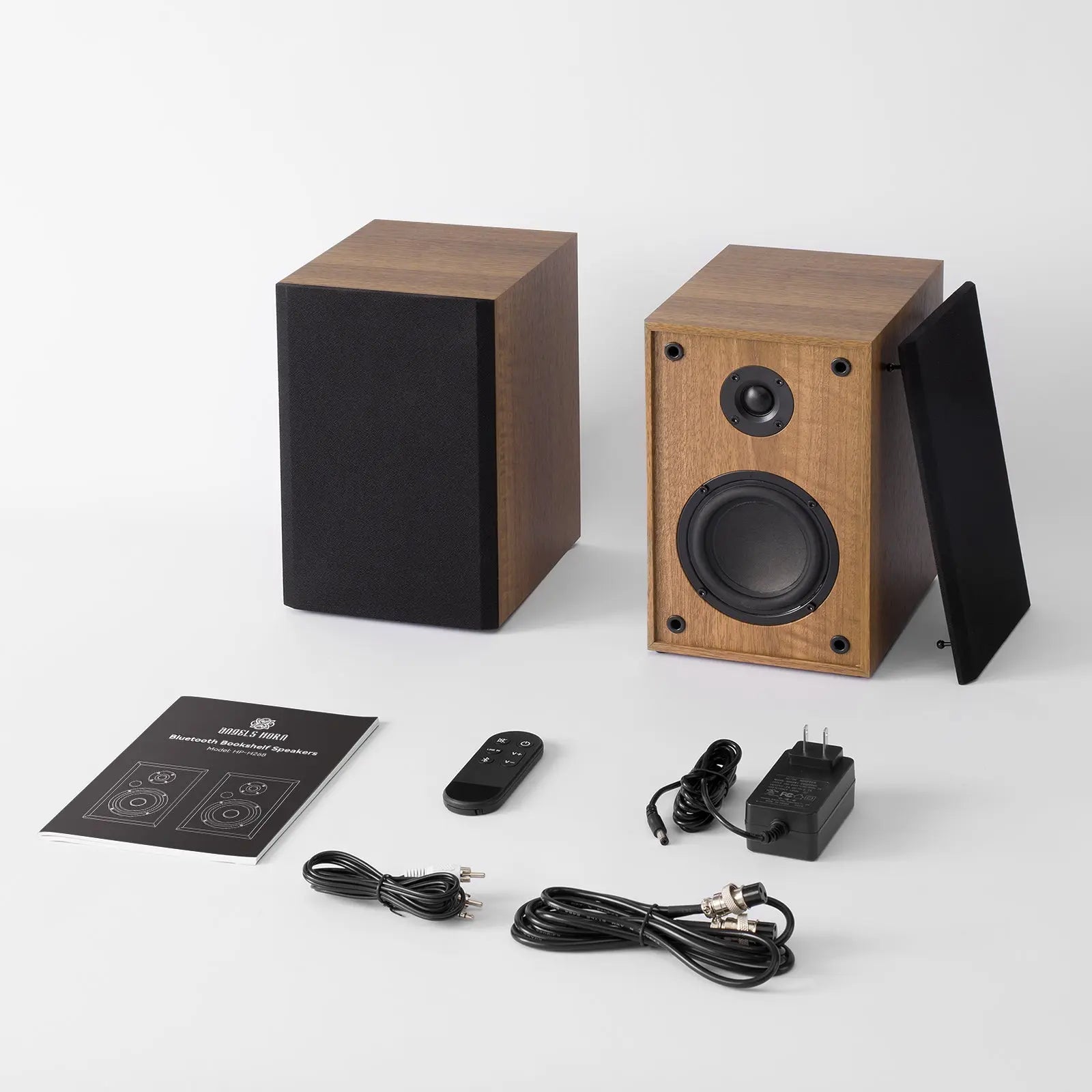

Please check thoroughly and make sure you find the following items that cohe along
with this package:

1) Speaker with Power Jack
2) Speaker without Power Jack
3) Power Adaptor
4) Audio Cable
5) Speaker Cable
6) Remote Control
7) Instruction Manual

Connection Between The 2 Speakers
Connect the 2 speakers with the speaker cable.

Stereo System Connection

Connect the speaker with your audio output device which is set on LINE mode.

NOTE:

The Line in Jack is not designed to be connected directly to the turntable
player which is set on PHONO mode. Or else the volume will be very low.

Please connect your player to a pre-amplifier or set it on LINE mode first.

Main Power Connection
The power adaptor is in the foam packing material. Unpack the power adapttor and
plug the small end into the DC power jack located at the back side of the speaker.
Plug the power adaptor into your power outlet.

Operation:

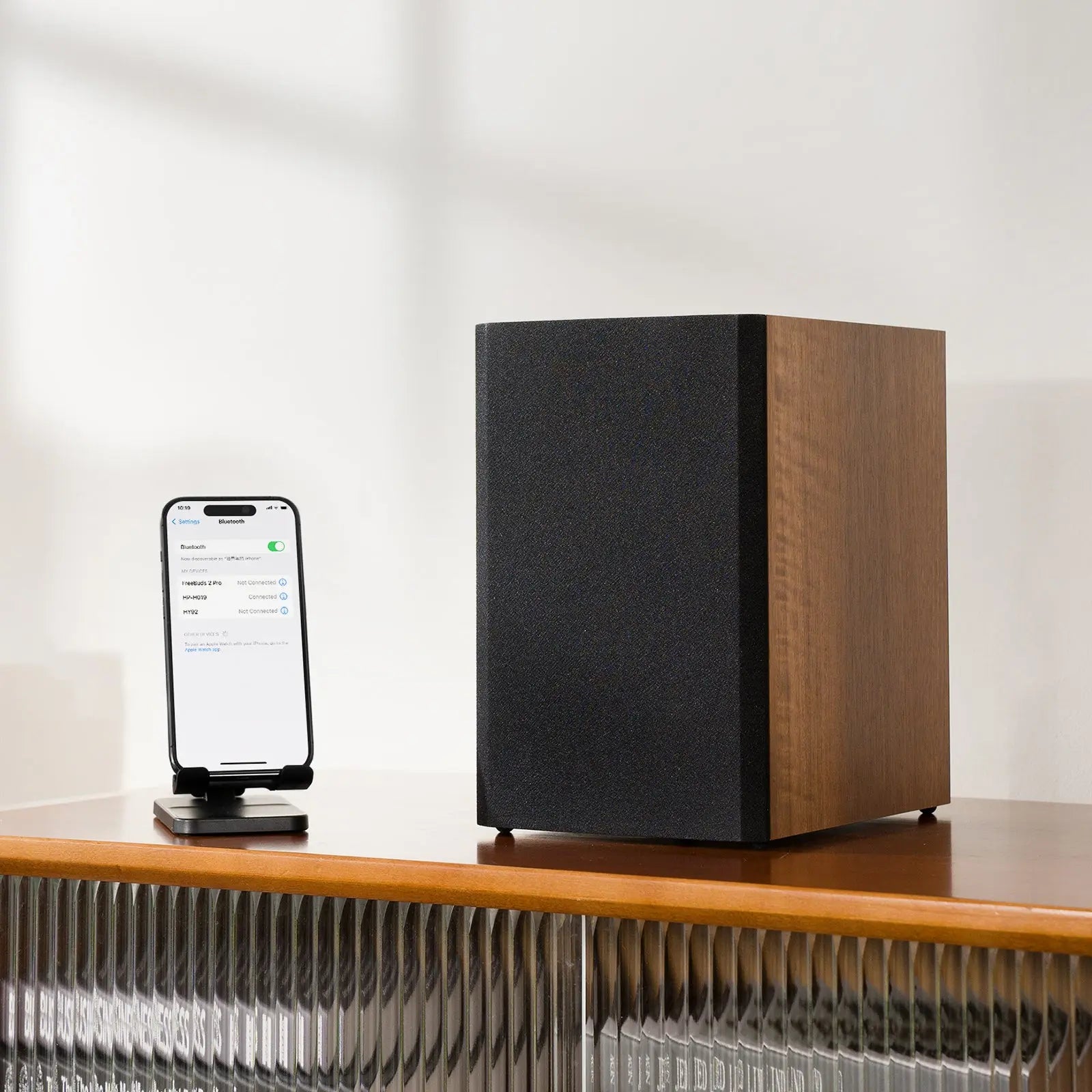

Bluetooth Operation
1. Connect the included power adapter to unit and press the power rocker s
be "ON" position.
2.Press the Bluetooth button on remote control. The indicator will light iue.
3.Turn on the Bluetooth feature of your audio device,search for"HP-H268" and pair.
4.Play and stream music from your device to this speaker

5.Adjust the volume by the volume knob at the back side or remote control.

6.To disconnect pairing, power off the speaker or turn off Bluetooth pairing on your
audio device.

Note: Bluetooth version 5.2

Line in Operation

1.Power on this unit.
2.Power on your audio device.
3.Connect the 3.5mm-RCA cable between your audio device and this unit
4.Start playing the music.

Maintenance and Cleaning:

Your speaker requires little of no regular maintenance. Remove dust with a slightly damp antistatic cloth. Never use a dry cloth, this will create static electricity and attract more dust!

Antistatic cleaning agents are available at specialist stores, but must be applied sparingly to avoid damage to rubber parts. If the speaker is not used over a long period of time, disconnect it from the power supply.

NOTE: Always disconnect the speaker from the power supply as a precaution before maintenance!

Useful Tips

The speaker should be positioned on a low-resonance surface such as wood or multiple layer ply board to avoid structural vibrations disturbing playback.

Potential Incorrect Use and Fault Conditions

These speaker is manufactured to the highest standards and undergo strict quality controls before leaving the factory.

Faults that may possibly occur are not necessarily due to material or production faults but can sometimes be caused by incorrect use or unfortunate circumstances. Therefore the following list of common fault symptoms is included.

Can not play music from your Bluetooth device:

-The unit is not connected to the main power supply.

-No power at the outlet.

-The unit is on LINE IN mode.

No signal through one or other channel or both channels:

-Speakers are muted.

-No connection to the speakers.

-No connection between the 2 speakers
