Angels Horn AH6 Turntable HiFi System - Premium Record Player with Speaker
Get it between -
Remember, this is a vintage-styled turntable with modern technology - giving you the best of both worlds. Enjoy the warm sound of vinyl with the convenience of today's audio technology.
- Hi-Fi Sound Quality: Enjoy precise, clear audio with 18W speakers and a high-quality Audio-Technica stylus.
- Dual Speed Options: Supports 33 1/3 and 45 RPM for flexible vinyl playback.
- Low Distortion Playback: Features a wow and flutter of ±0.15% for stable sound.
- Premium Build: Sturdy, sleek design with an 8.6” tonearm and a wooden finish.
- Powerful System: 70W power consumption ensures powerful performance and durability.
- In stock, ready to ship
- Backordered, shipping soon
1. Lid Hinge
2. Motor Pulley
3. Drive Belt
4. Turntable Spindle
5. Turntable Platter
6. Anti-skating Weight
7. Counterweight
8. Anti-skating Stick
9. Tonearm Lift Lever
10. Tonearm Clip
11. Tonearm
12. Stylus Cartridge
13. 33/45RPM Selector
14. Left Peak Power Meter
15. Meter Power Button
16. Right Peak Power Meter
17. Volume Control
18. Lid
19. Pitch Adjustment Knob
20. Line In Jacks
21. Line Out Jacks
22. External Speaker Jacks
23. Power Cord Jack
24. Power Switch

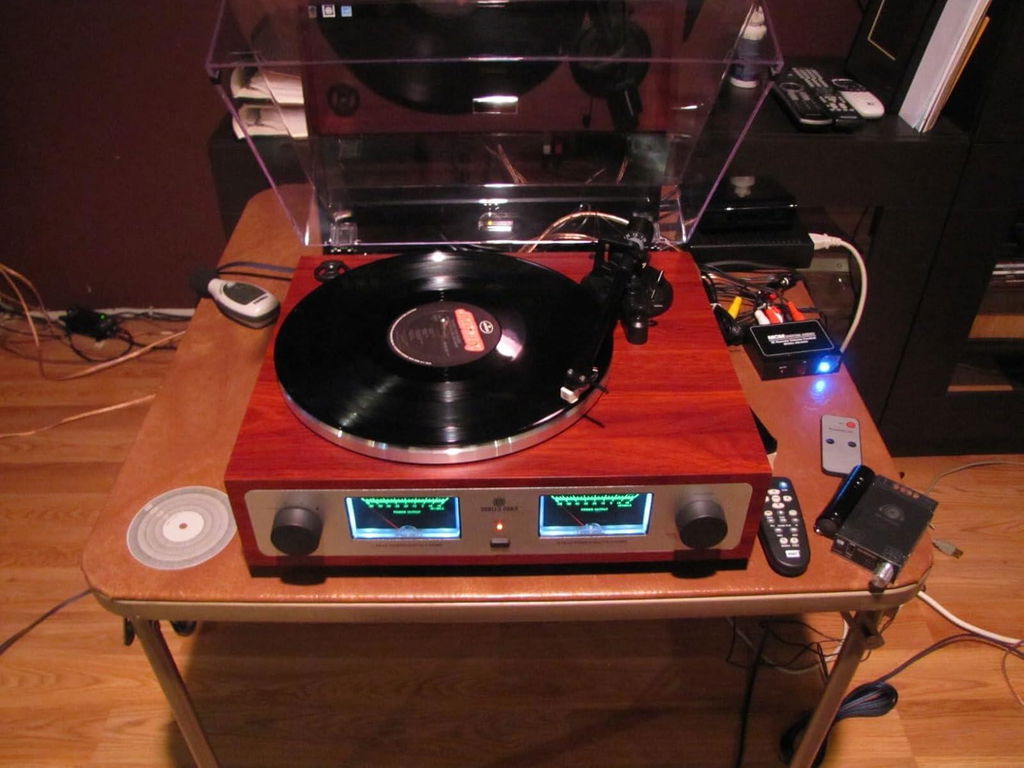

Turntable
- Power: AC power adapter, DC output 15V 2400mA
- Power Consumption: 70W
- Turntable Speed: 33 1/3, 45 RPM
- Wow and Flutter: ±0.15%
- Signal to Noise: -65dB
- Tracking Force Range: 0-6.0g
- Effective Tonearm Length: 8.6” (218.5mm)
- Dimensions (L x W x H): 16.6” x 13.5” x 7.6” (422x342x193mm)
- Weight: 13.2lb (6kg)
Stylus
- Model: Audio-Technica AT3600L
- Frequency Response: 20Hz - 20kHz
- Channel Balance: <2.5dB
- Channel Separation: >18dB
- Output Voltage: 2.5mV
- Recommended Load Resistance: 47kΩ
- Amplifier Connection: MM (Moving Magnet) - input
- Recommended Tracking Force: 3.5±0.5g
- Weight: 0.18oz (5.1g)

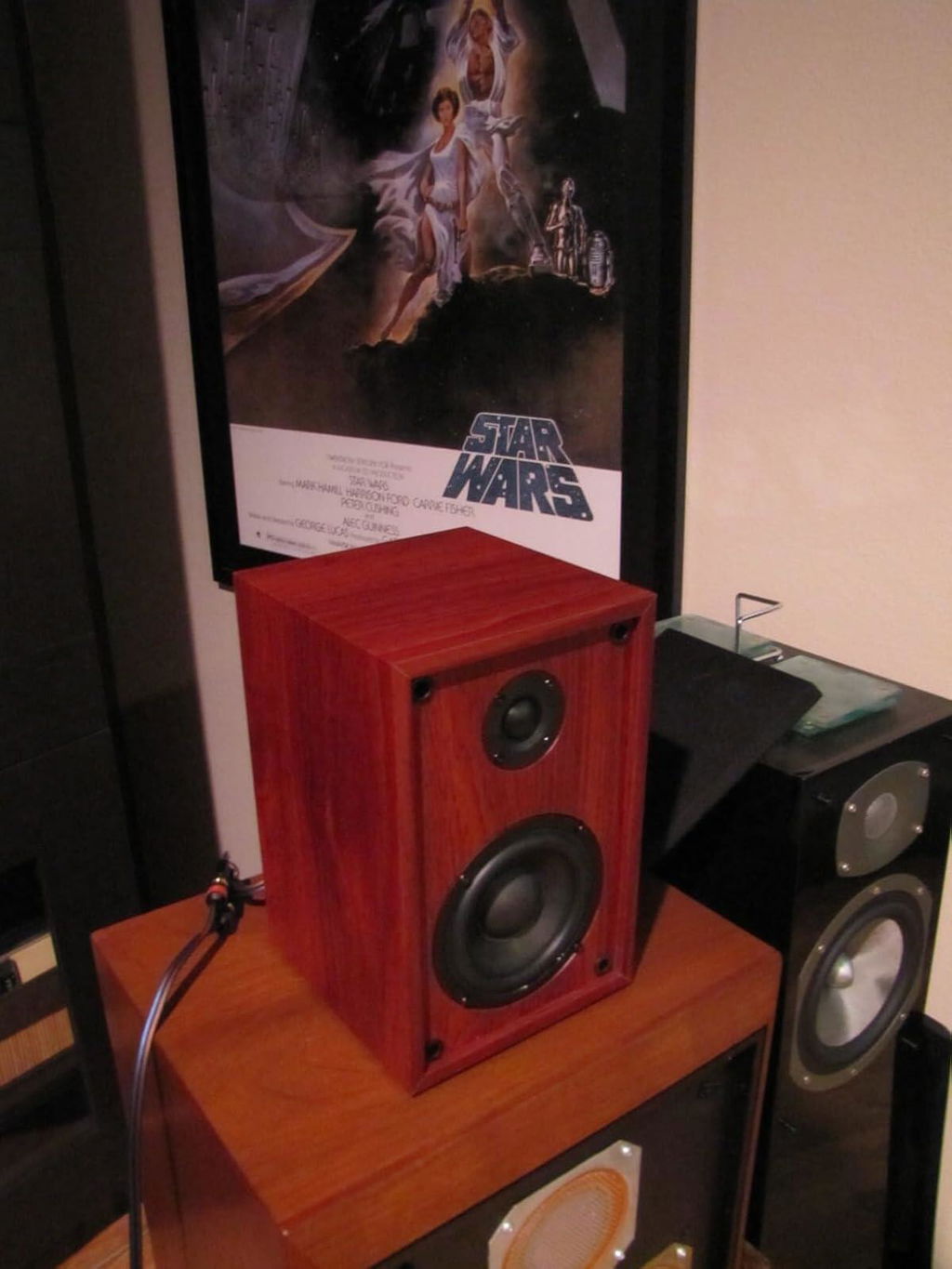

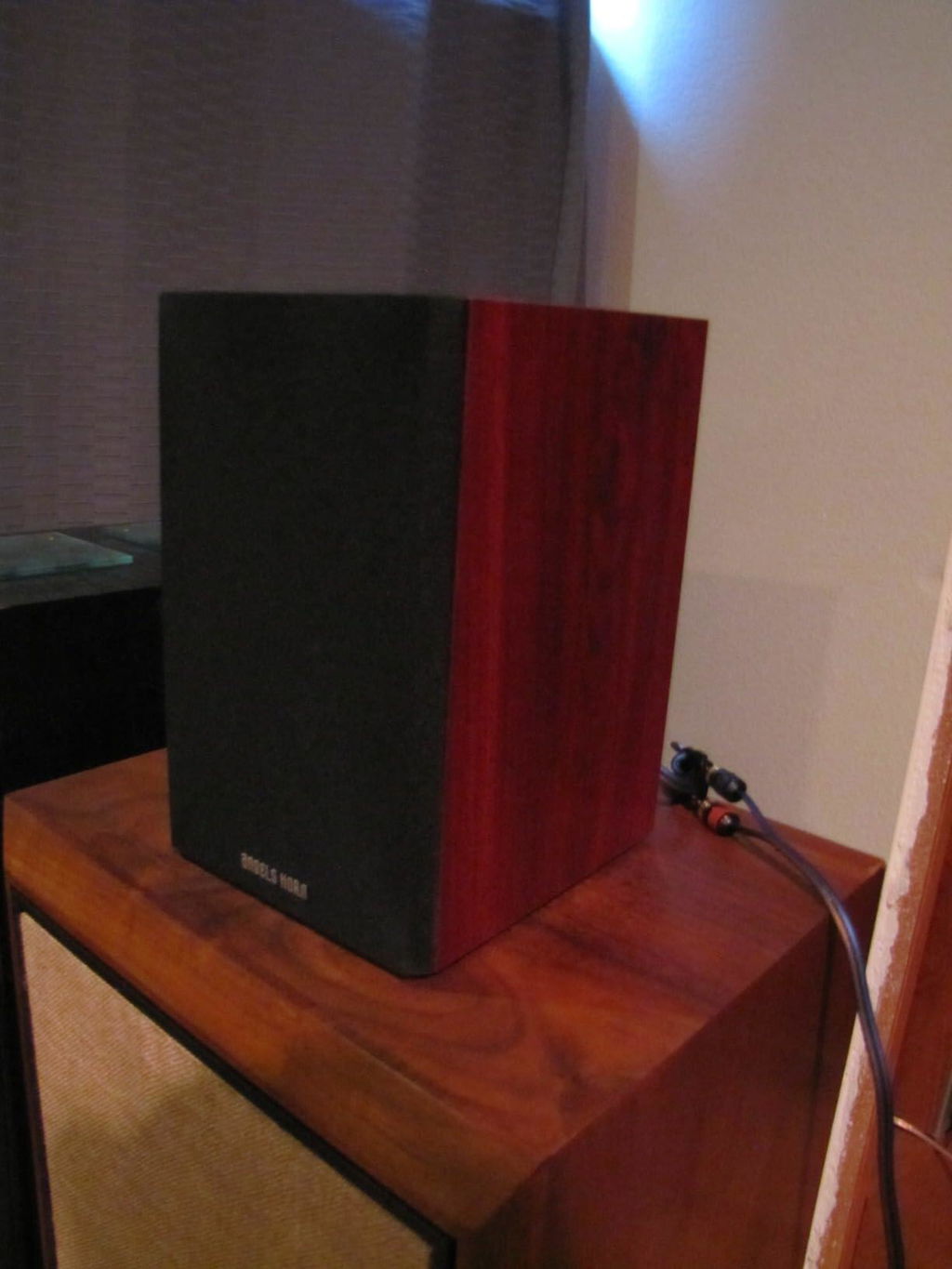

Speaker
- Output Power: 18W*2
- Speaker Units: Woofer: 4", Tweeter: 2"
- Impedance: 4 Ω
- Frequency Response: 50Hz-20KHz
- Dimensions: 6.2” x 7” x 9.8” (158 x 177 x 248mm)
- Weight: 8lbs (3.6kg)
NOTE: Design and specifications are subject to change without notice.
1. How long does delivery take?
1) Our general delivery time is 1-4 business days.
2) We will send you an e-mail to inform you that the goods have been scheduled for delivery and the approximate arrival time, when you complete the payment order.
2. What countries do you ship to?
US Local Warehouse fast delivery (1-4days).
EU German Warehouse (3-8days)
3. We cannot deliver to the following areas:
1. Alaska
2. American Samoa
3. Guam
4. Hawaii
5. Marshall Islands
6. Northern Mariana Islands
7. Palau
8. Puerto Rico
9. Rhode Island
10. U.S. Virgin Islands
11. Armed Forces Americas
12. Armed Forces Europe
13. Armed Forces Pacific
Thank you for your understanding.
3. Free Shipping and Tax
We offer free shipping within the contiguous U.S. for our website all orders .
No additional tax-related fees will be charged to customers, and the price of all our products already includes tax.
4. How will my delivery be shipped?
Amazon functions as our logistics partner to ship out Angelshorn turntable reocrd palyer products. They will choose the carrier that they think works best for our customers.
5. Can I change the delivery address of my package after it has been shipped out?
Our orders are packaged and shipped out quickly after they are placed to ensure that your turntable arrive to you as soon as possible. Because of this, all address changes must be requested as soon as possible after your order has been placed. We'll do our best to change the shipping address, we cannot change the shipment once the product is en route.
Need to change your shipping address? Send us an email: support@angelshorn.com
6. What do I need to do when I received a defective / flawed products?
We pay special attention to the customer's experience of product quality. If you experience any material or craftsmanship flaw, we will immediately replace it for you. We will bear all the transportation costs incurred.
Please do n’t hesitate to contact us if you have any questions about your order.
- Angels Horn provides 60 days money-back guarantee from the date of receipt.
- We do not accept returns for missing components or any signs of use (such as scratches or dents). Please include all original components and packaging when returning the product for a refund.
- If the return is caused by the consumer, the consumer should bear the return shipping fee.
- For returns caused by product quality problems, consumers do not need to bear the shipping costs.
2-YEAR QUALITY WARRANTY
Angels Horn provides a 2 years quality warranty from the date of receipt.
WHAT DOES MY 2-YEAR WARRANTY COVER?
- Turntable unit and speaker quality defect.
- The absence of original parts and accessories that came with the product.
- Warranty Exclusions: Consumable parts including, but not limited to, power cord, stylus, and drive belt.
LIFETIME ACCESSORY SUPPORT
- We provide lifetime accessories support for our record players, you can buy accessories directly on Angels Horn official website.
- If the accessory you need is not listed, please feel free to contact us for assistance.
- In the event that you require repair or replacement under warranty, please contact us before sending your product in.
- Please describe the product quality problem you encountered and send us your order number as well.
- If the product problem requires simple debugging, our professional technicians will guide you to complete the debugging.
- If the product needs to be sent back for replacement, our customer service staff will assist you with the replacement process.
WHEN WILL I RECEIVE MY REPLACEMENT or REFUND
- We arrange for inspection and testing immediately after each return we receive to ensure that any issues are accurately diagnosed, and to help further improve our products.
- Once your item is received, we will refund or issue a replacement within 2-3 business days.
GET IN TOUCH
- Whatever your question, we’re here to help.
- The AngelsHorn team is always looking for feedback and comments from you to improve our service quality.
- Email Us:support@angelshornstore.com
Angels Horn AH6 Setup Guide
Please read before unpacking.
1. Unpack all items from accessory bag.
- Belt (inside the platter)
- Counterweight (in a hole of the Styrofoam)
- User Manual
- Belt Hook
- 45 RPM Adapter
- Cartridge Alignment Protector
- Audio Cables for Speakers
- Anti-skating Weight
- Power Cord
2. Remove the turntable and speakers from the box.
3. Lift the wrapped turntable and speakers out of the box.
4. Unpack the power supply and other accessories.
5. Unpack the platter.
6. Put the drive belt on the pulley.
Install the belt to the platter drive ring under the platter making sure the belt is flat when seated, and then attach the belt to the motor pulley.
Make sure that the belt does not get twisted.
7. Put the felt mat on the platter.
8. Install the counterweight.
- Gently push and turn the counterweight onto the rear of the tonearm (with the dial facing towards the front of the turntable).
- Position the counterweight between the tonearm rest and the cartridge.
- Lower the tonearm lift lever.
- Adjust the counterweight until the tonearm achieves a neutral balance.
- Raise the tonearm lift lever, return the tonearm to its rest, and lock it.
9. Balance the tonearm.
- Position the tonearm between the tonearm rest and platter, without moving the counterweight, gently rotate the tracking force dial to “0”, and check the tonearm is still balanced. If not, return the tonearm to its rest and lock it and proceed to the next step. If not... rebalance the tonearm.
- Hold the flat face of the counterweight and rotate it counterclockwise until you feel you made the second rotation and stop at “1.5”.
- Slip the loop of the anti-skating weight’s thread over the 3rd groove of the stick, tighten the loop, and then hang the thread on the hook of the support.
- The knot of this loop is a slip knot and is adjustable. The specific operation is to pinch the side of the short thread and gently pull the loop to adjust the size of the loop.
10. Installing the lid.
11. Connection to the Included Speakers.
Connect the speakers using the included audio cable (black cable to black cable clamp and red cable to red cable clamp).
12. Insert the DC plug of the AC adapter cord into the DC input jack.
13. Then you can enjoy your vinyls!
Cautions
- When peeling off the sticker on the stylus or applying a downward force may cause the stylus to come off the body. Only low volume will be produced if the stylus comes off.
- Only move the tonearm toward the tonearm rest. Move it at a slower speed and keep it in the lock position.
- If adjusting the anti-skating adjustment dial (located on the rear of the platter) is required, turn it slowly.
- The Turntable is Wi-Fi certified, which allows it to communicate with other Wi-Fi compatible devices, like nearby Bluetooth speakers or headphones.
- If the stylus and vinyl become loose during transportation, if there is no sound or the sound may not be heard the record stylus has been damaged.
- The input terminals of the turntable are for connecting external audio devices like MP3 players, CD players, etc., so you can listen to your music through the built-in speakers. Please refer to the instruction manual for details.
- Important: for warranty, do not throw packaging away.
